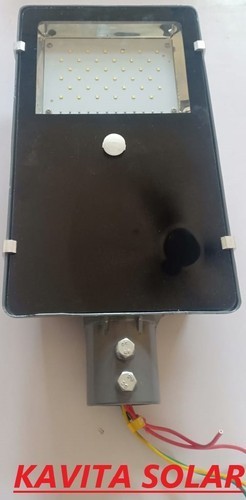

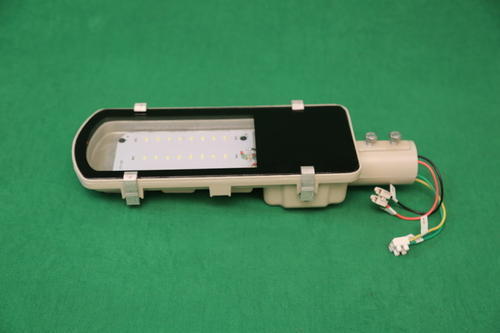

Solar Led Street Light (Aluminum Body)

Solar Led Street Light (Aluminum Body)

Product Details:

X

Price And Quantity

  • 575 INR
  • 20 Box

Trade Information

  • Cash Advance (CA), Cash in Advance (CID)
  • 1-7 Days
  • Yes
  • Sample costs shipping and taxes has to be paid by the buyer
  • MASTER PACKING
  • All India
  • ISO, MSME, NSICI

Product Description

Key Features:

  • Stand Alone System
  • "Fit and forget" device
  • Safe, efficient and reliable
  • Easy Installation
  • Free from messy cable
  • High refractive Acrylic
  • Maximum light coverage
  • Reliable MOSFET based
  • Electronics Appealing Aesthetic of Luminaries
  • As per MNRE Specification
  • Automatic dawn to dusk operation
  • Temperature Compensated Battery charging
  • PWM MOSFET based solar charge
  • controller Timer-Optional

KAVITA SOLAR offers a wide range of Solar PV LED Street Light with standard and custom built versions. The Standard model generally conforms to MNRE specifications

General Specifications and Features:

  • Housing material : Aluminum
  • Chimney Material : Acrylic/Polycarbonate
  • SPV Module : High efficiency silicon cell based SPV module
  • Battery 12V @ C-10 Low maintenance tubular lead acid battery
  • LEDS Ultra Bright High Power LEDS
  • Battery Box :  ABS/MS
  • Module mounting frame : Mild steel galvanized
  • Pole : Mild steel galvanized (15feet)/ as per requirement

Provisions:

Fuse LED indications :

  • Battery charging in process
  • Battery Charged (Charging disconnect)
  • Battery deep discharge (Load disconnect) Solder free installation

Protection options :

  • Battery Reverse polarity
  • Battery deep discharge
  • Battery Overcharge- 100%
  • short circuit- Surge/lightning

Electrical Specification :

  • Load disconnect battery voltage 11 0.2 volts or as required
  • Load reconnect battery voltage 12.5 0.2 volts or as required
  • Constant Charging Voltage 14.5 0.2 volts or as required
  • Idle current consumption Less than 5ma
  • Overall efficiency (Including charge controller) : 85%
  • Light Output 130 lumens/W (Nominal)

Variants :

Model No. LEDS POWER Battery Capacity C/20 rate Module

  • SUN- LSLS1 6 7.2W 12V-40Ah 40Wp
  • SUN- LSLS2 9 10.8W 12V-75Ah 60Wp
  • SUN- LSLS3 12 14.4W 12V-100Ah 100Wp
  • SUN- LSLS4 18 21.6W 12V-150Ah 150Wp
  • SUN- LSLS5 24 28.8W 12V-200Ah 200Wp
